IOT Door Opening Machine

Problem Statement: When I moved into my college dorm room, I quickly realized that my roommate and I had a nack for losing our keys. As a result I decided to build a machine to open our door for us; therefore, I could reduce the chance of being locked out.

Solution: The solution to the problem was a machine that would be able to open my door for me. I settled on a web interface backed by an embedded system attached to the door that acts as a server. Clients press a button on the website and the machine (an ESP8266/NodeMCU) responds by operating a stepper motor to open the door.

Skills Used:

  • NodeMCU (ESP8266, ESP32)
  • A4988 Stepper Driver
  • Nema 17 Stepper Motor
  • 8x2 LCD Display
  • C++
  • HTML
  • CSS

Source Code

Development Process

Prototype One

Step image 1

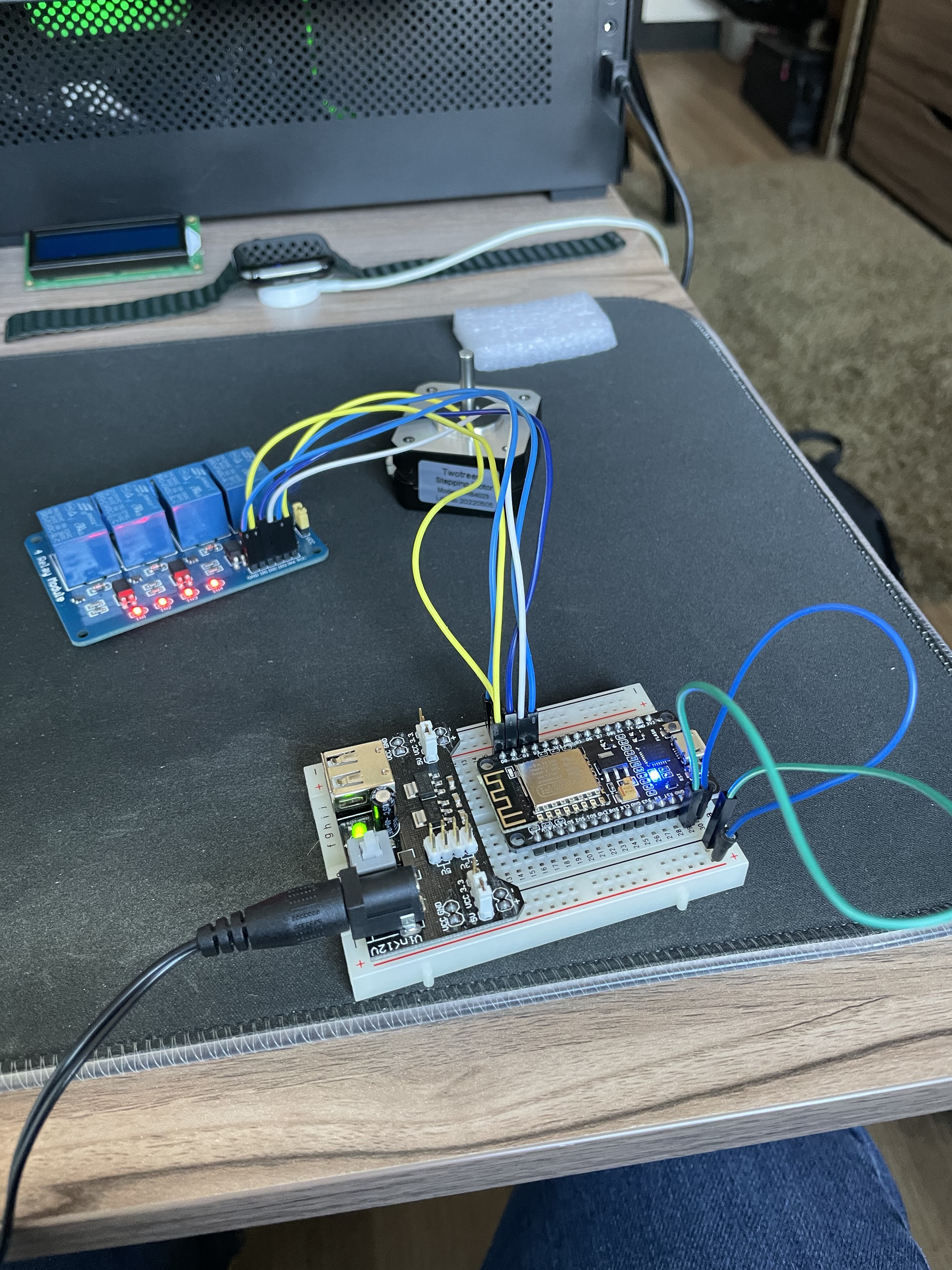

The first prototype consisted of one NodeMCU and a relay module with 4 relays. The relays would be used to modulate the poles of a two pole stepper motor by using the Stepper.h library included with the Arduino IDE.

A better solution

Step image 1

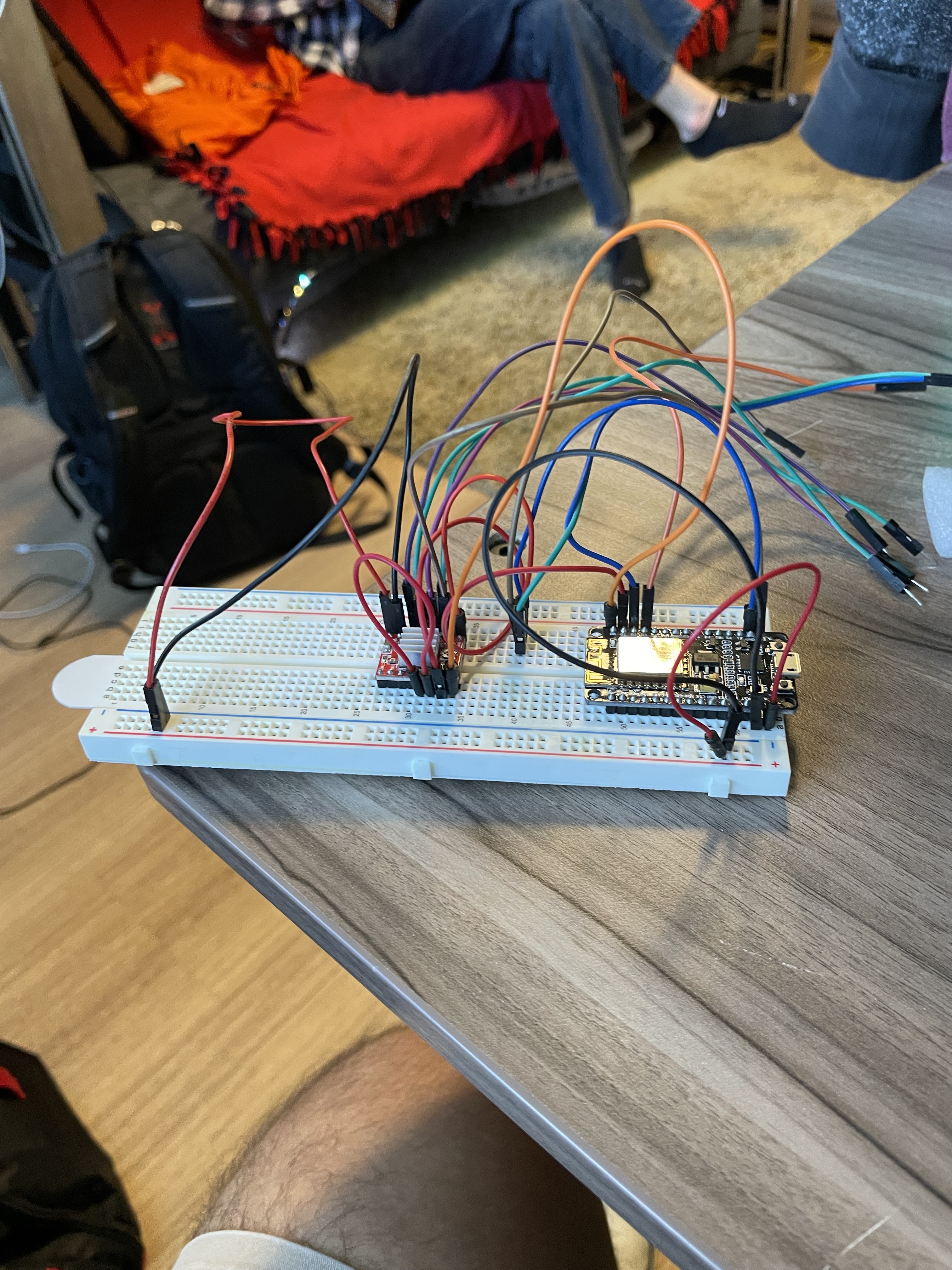

After testing the relay module method, I realized the correct solution to the problem was to use a stepper driver to control the stepper motor. The driver chosen was the A4988 Stepper Driver due to its low cost and versatility.

Starting Version 2

Step image 1

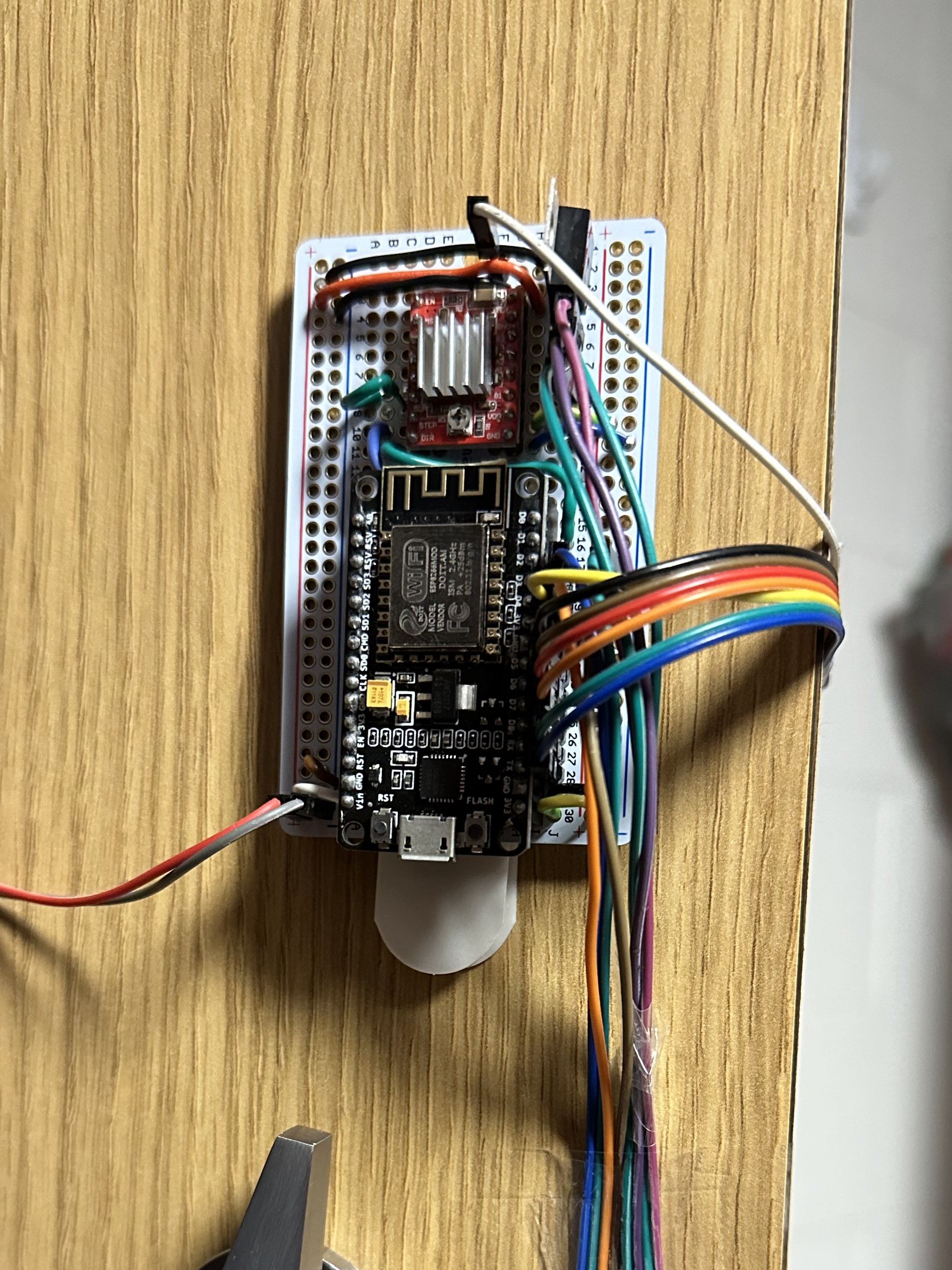

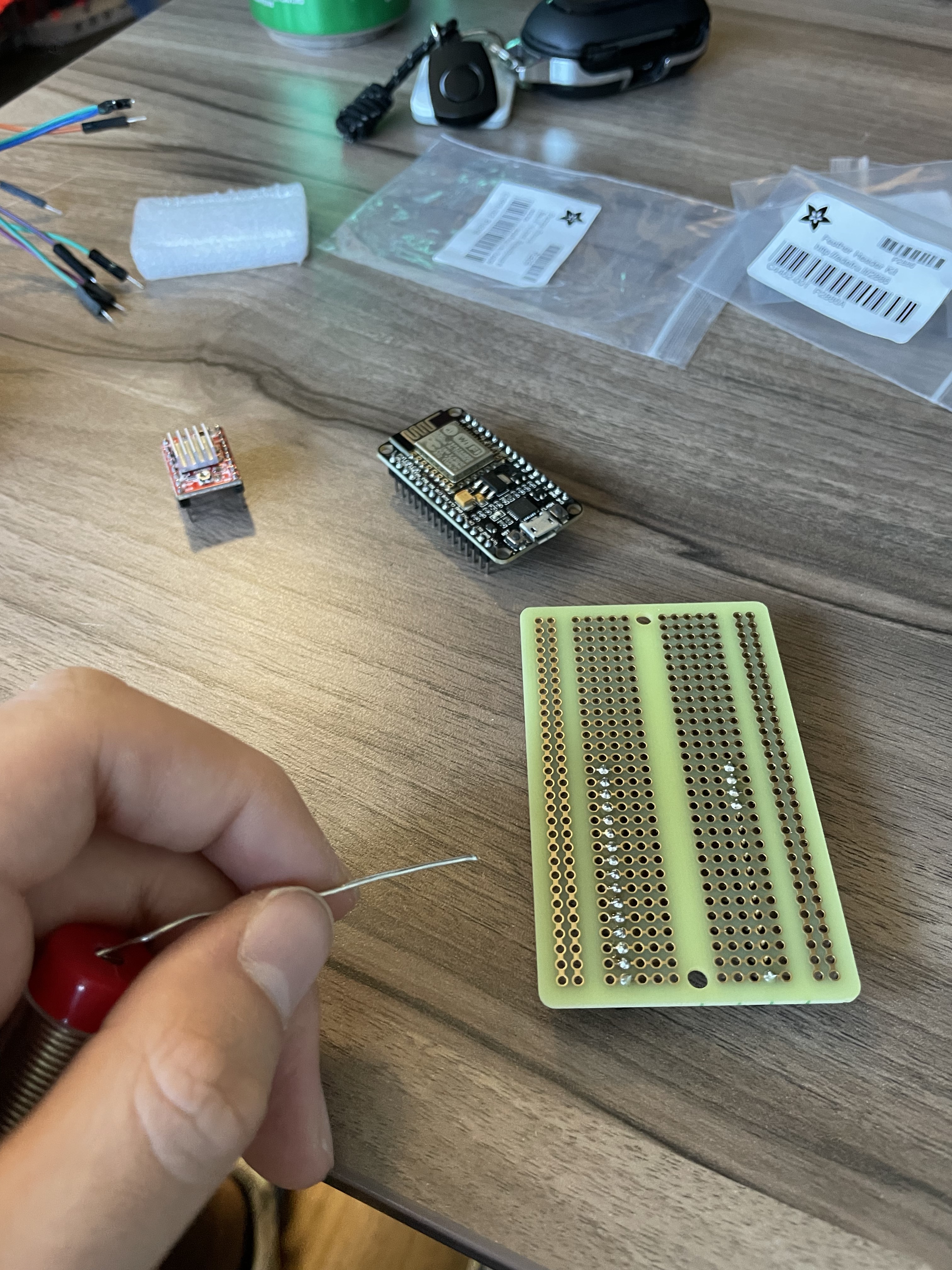

The new design was soldered onto a breadboard PCB to make it more robust for testing the machine on the door. The previous breadboard approach was prone to falling apart when mounted vertically.

Version 2 completed

Step image 1

The first working version of the door opener is pictured above. The first version was inefficient with space because it used a very large assembly to pull on the door handle. At the time, this was all we had to solve the problem.

Starting Version 3

Step image 1

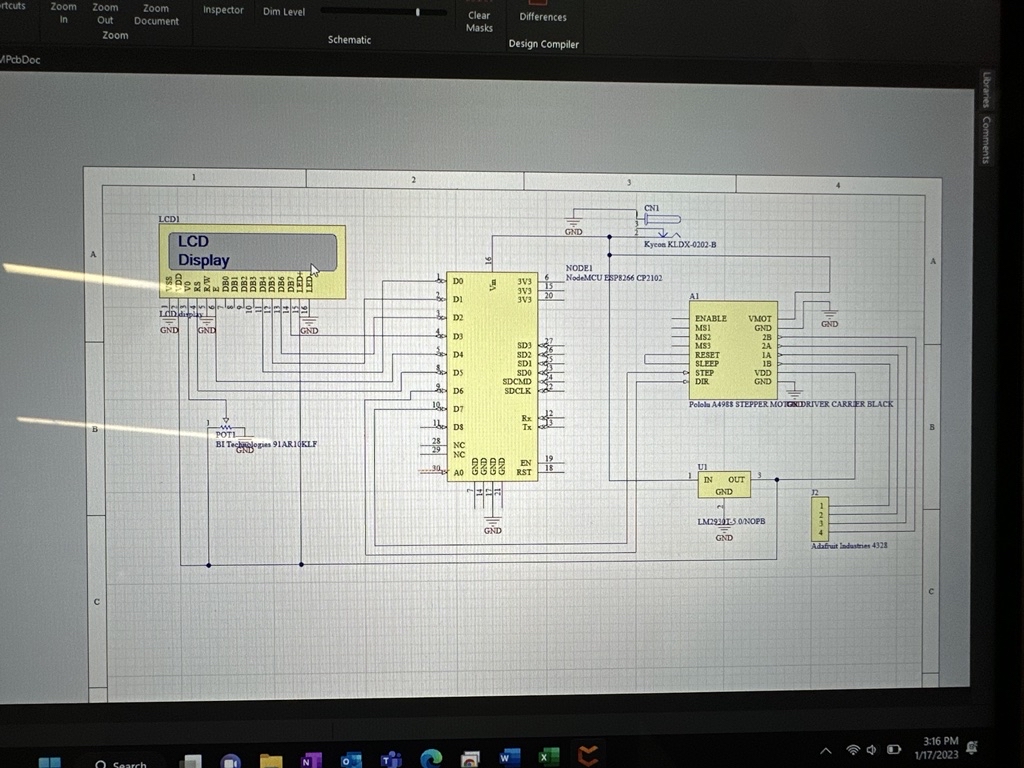

After identifying the shortcomings of Version 2, I moved on to a custom solution which allowed me to move away from the soldered breadboard and create a custom housing for the new PCB design. It also gave the opportunity to address the size issue of the machine that physically opened the door.

Version 3 Complete

Step image 1

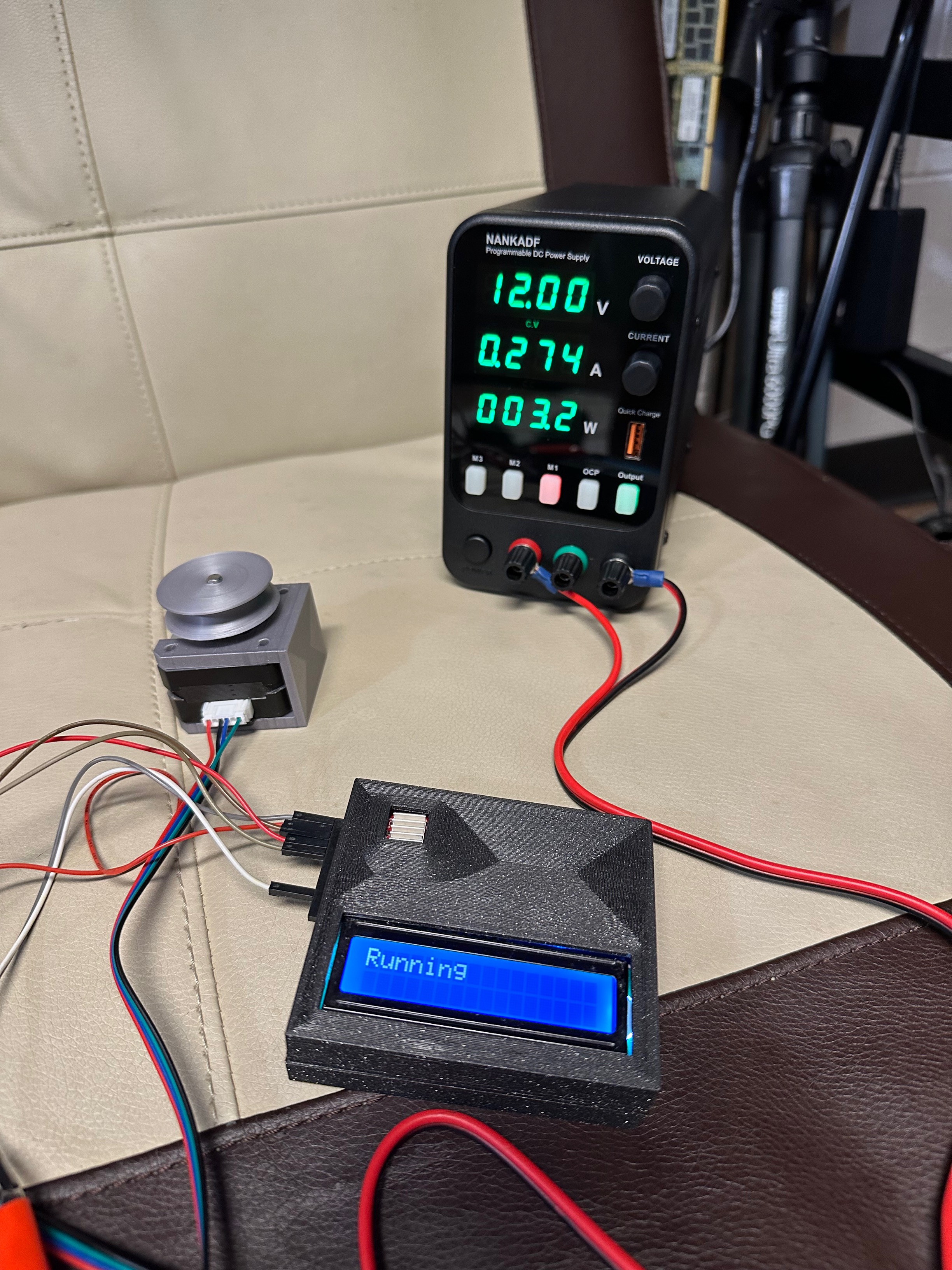

Depicted in the images is the current version of the door opener, Version 3. Most issues from previous versions have been addressed: the size of the apparatus that pulls on the door handle has been decreased, the web interface has been refined, and the embedded system is visually appealing.
